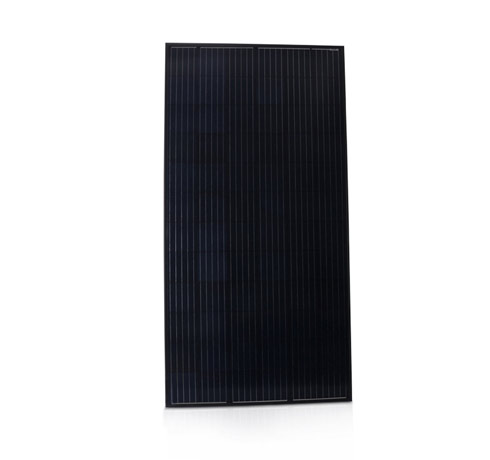

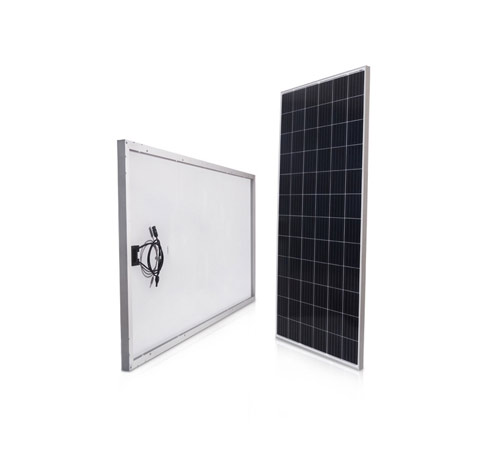

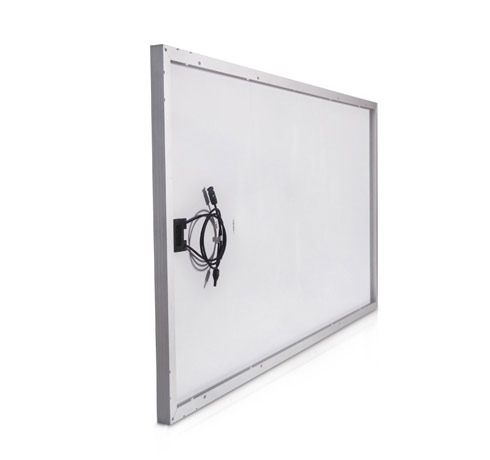

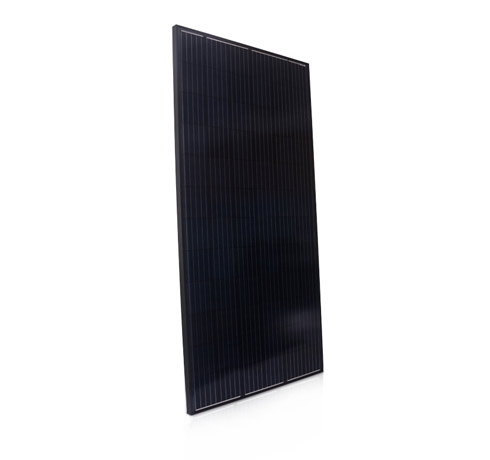

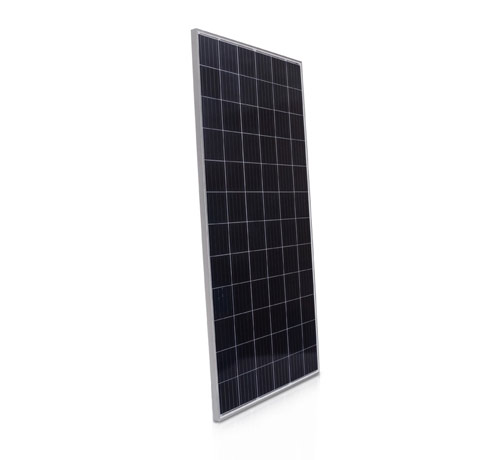

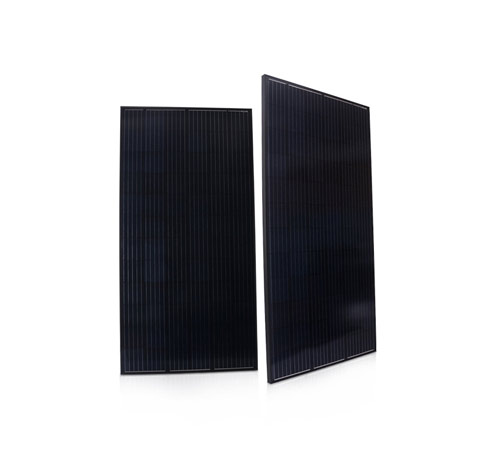

JAYUAN Poly Solar Panel 240w

JAYUAN Poly solar panel 260w is composed of 60 solar cells. Have multiple crystals of silicons instead of a single crystal as in the monotype. Which results in the loss of efficiency and require a much bigger size of the panel to get higher efficiency. For the large areas and off grids often polytype is preferred due to the lower cost of the product. Product is customized and selected based on the requirement of the power which need to be generated. Several panels can be combined to generate more power as required. Which require to be connected with a suitable system and require a suitable environment to work more efficiently.

Free Quote PDF Download

Electrical Characteristics
Mechanical Characteristics

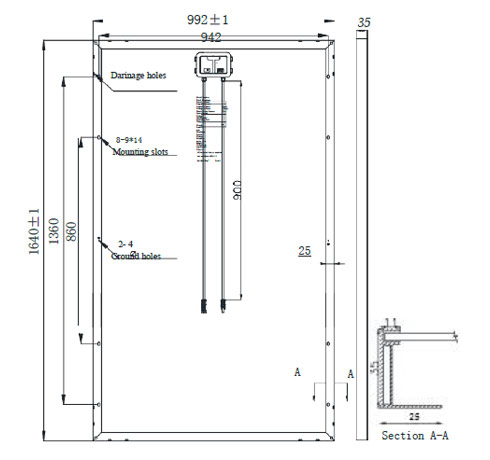

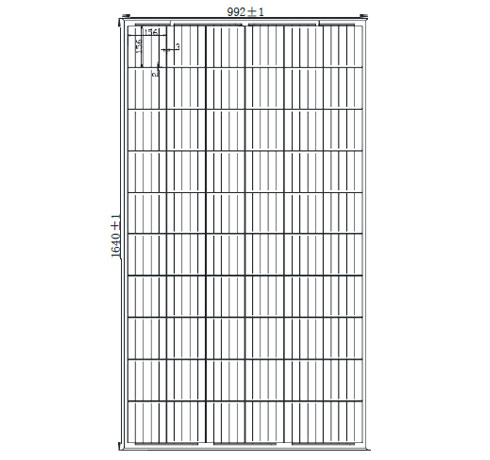

Engineering Drawings

Electrical Characteristics Of JAYUAN Poly Solar Panel 240w

Maximum Power at STC(Pmax)	260W
Optimum Operating Voltage (Vmp)	30.92V
Optimum Operating Current (Imp)	8.41A
Open-Circuit Voltage (Voc)	37.36V
Short-Circuit Current (Isc)	9.28A
Solar Cell Efficiency (%)	18.16
Solar Module Efficiency (%)	15.98
Operating Temperature	-40 to 85℃
Maximum System Voltage	DC1000
Maximum Series Fuse Rating	15A
Power Tolerance	0~+3%
STC: Irradiance 1000W/㎡, Modules Temperature 25℃, AM=1.5

Temperature Coefficient And Mechanical Characteristics Of JAYUAN Poly Solar Panel 240w

Nominal Operating Cell Temperature (NOCT)	47℃+/-2℃
Temperature Coefficient of Pmax	-0.47%/℃
Temperature Coefficient of VOC	-0.346%/℃
Temperature Coefficient of ISC	+0.036%/℃
Solar cell	Poly156*156mm
No.of cells	60 (6×10)
Dimensions	1640mm992mm35mm
Weight	19kg
Front Glass	3.2mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	IP67 Rated
Connector	MC4 Connector
Output Cables	PV 4.0mm², 0.9m
1*20’	350pcs
1*40’	/
1*40HQ	900pcs
