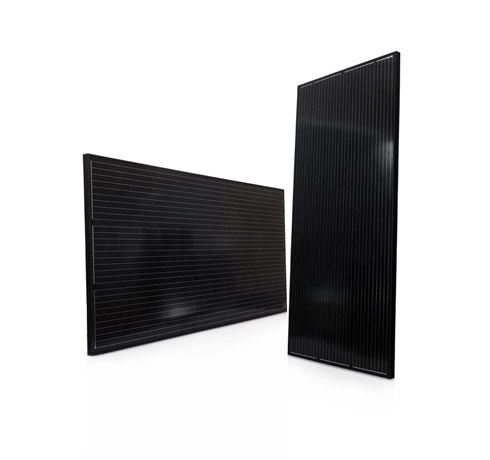

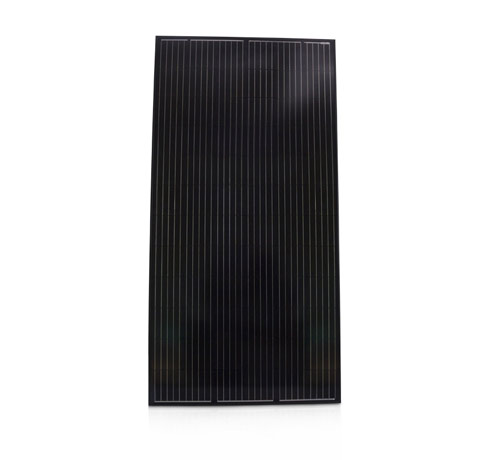

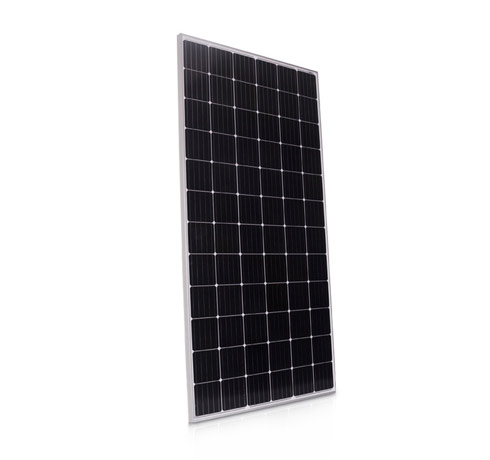

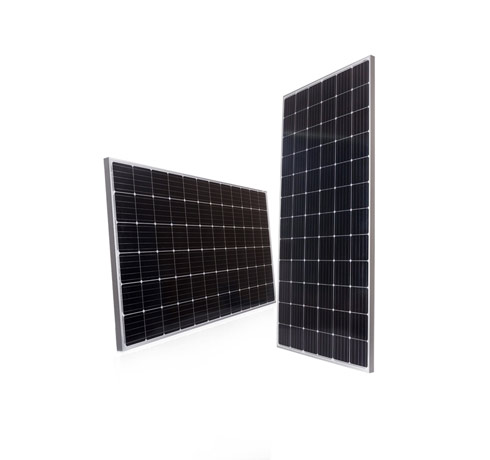

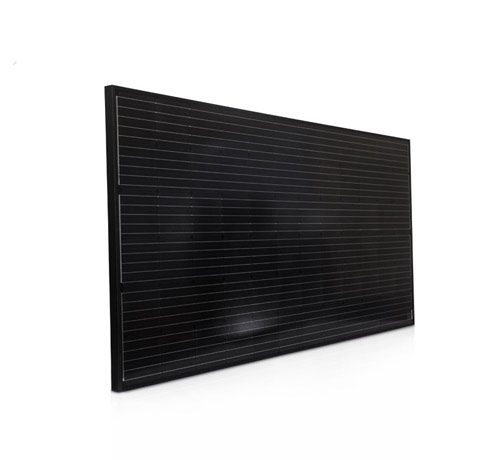

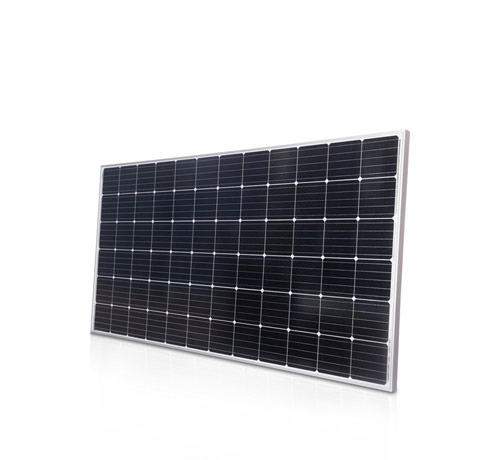

JAYUAN Mono Solar Panel 340w

JAYUAN Mono solar panel 340w is composed of mono solar cells. The efficiency rate starts from 15% to 24%. The appearance looks no pattern, dark blue, close to black after encapsulation. As to manufacture cost, mono is higher, for its long service life and ordered arrangement of the insider atoms. For the residential areas and on grids often monotype is preferred due to the great efficiency of the product.

Free Quote PDF Download

Electrical Characteristics
Mechanical Characteristics

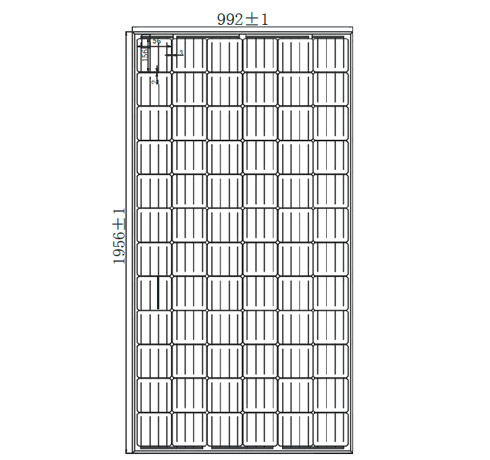

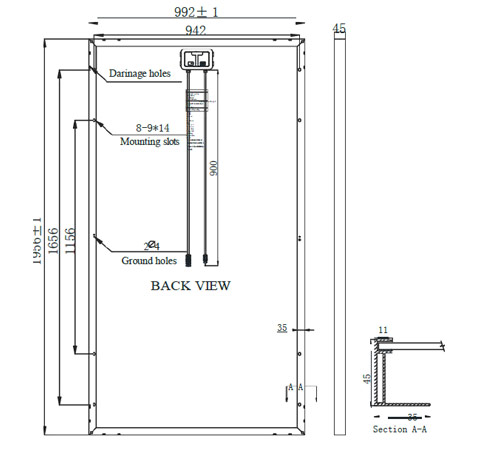

Engineering Drawings

Electrical Characteristics Of JAYUAN Mono Solar Panel 340w

Maximum Power at STC(Pmax)	340W
Optimum Operating Voltage (Vmp)	37.95V
Optimum Operating Current (Imp)	8.959A
Open-Circuit Voltage (Voc)	46.74V
Short-Circuit Current (Isc)	9.399A
Solar Cell Efficiency (%)	19.76
Solar Module Efficiency (%)	17.52
Operating Temperature	-40 to 85℃
Maximum System Voltage	DC1000
Maximum Series Fuse Rating	15A
Power Tolerance	0~+3%
STC: Irradiance 1000W/㎡, Modules Temperature 25℃, AM=1.5

Temperature Coefficient And Mechanical Characteristics Of JAYUAN Mono Solar Panel 340w

Nominal Operating Cell Temperature (NOCT)	47℃+/-2℃
Temperature Coefficient of Pmax	-0.47%/℃
Temperature Coefficient of VOC	-0.346%/℃
Temperature Coefficient of ISC	+0.036%/℃
Solar cell	Mono156*156mm
No.of cells	72 (6×12)
Dimensions	1956mm992mm40mm
Weight	35kg
Front Glass	3.2mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	PV--YH0906/PV-JB002
Connector	Plug and socket
Output Cables	PV 4.0mm², 0.9m
1*20’	/
1*40’	/
1*40HQ	/
