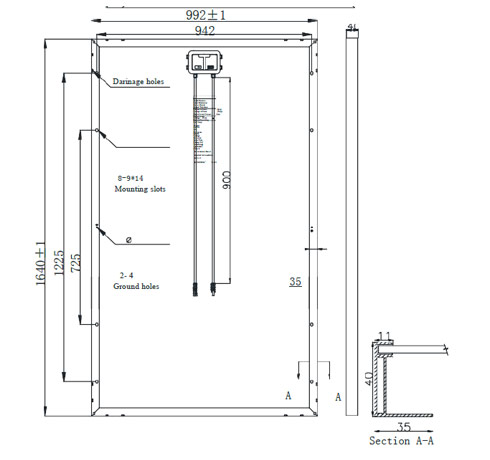

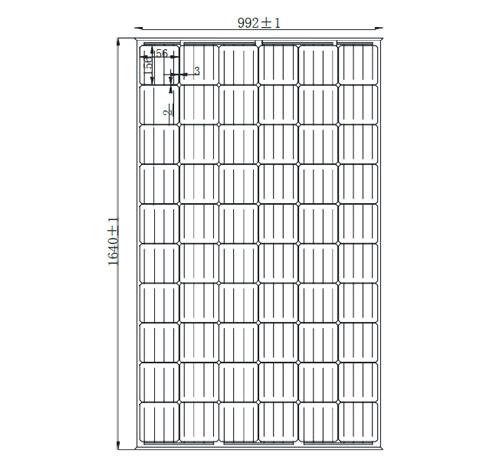

- Engineering Drawings

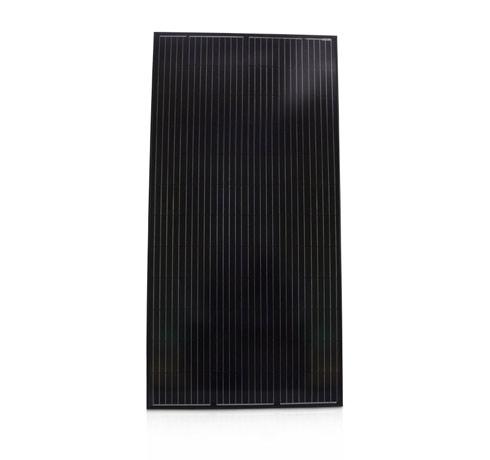

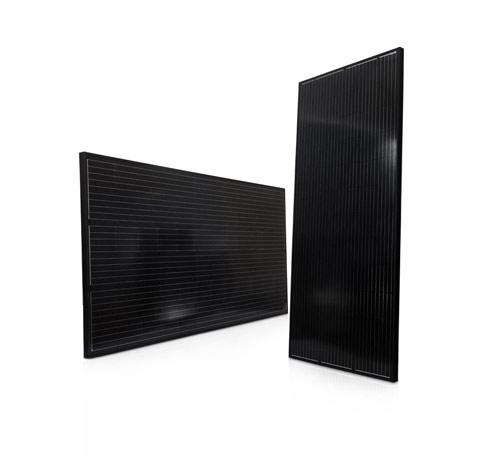

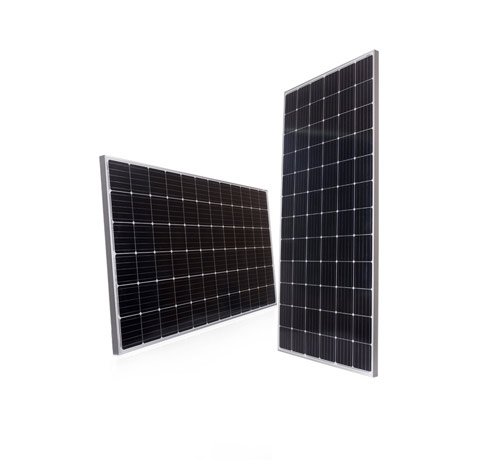

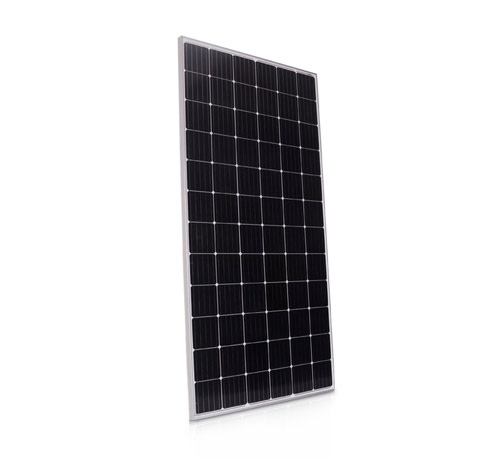

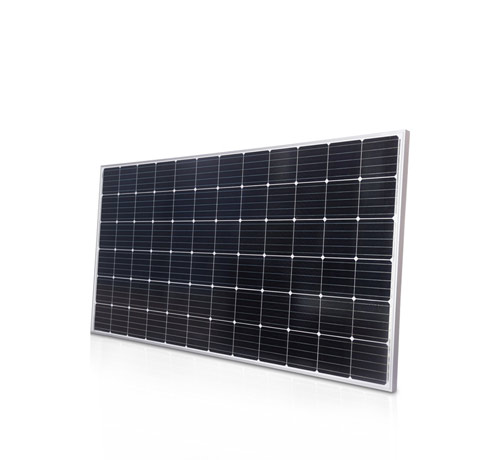

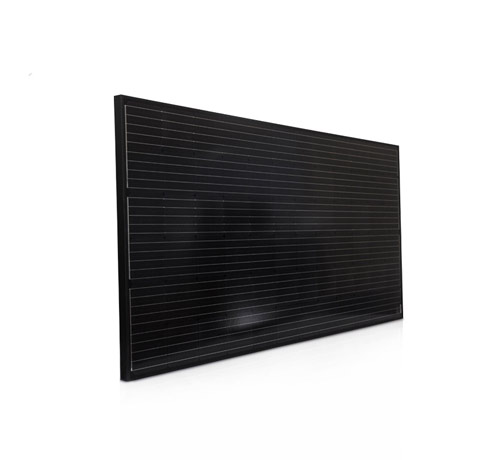

Electrical Characteristics Of JAYUAN Mono Solar Panel 240w
Maximum Power at STC(Pmax) | 260W |
Optimum Operating Voltage (Vmp) | 30.92V |
Optimum Operating Current (Imp) | 8.409A |
Open-Circuit Voltage (Voc) | 37.36V |
Short-Circuit Current (Isc) | 9.279A |
Solar Cell Efficiency (%) | 18.13 |
Solar Module Efficiency (%) | 15.98 |
Operating Temperature | -40 to 85℃ |
Maximum System Voltage | DC1000 |
Maximum Series Fuse Rating | 15A |
Power Tolerance | 0~+3% |
STC: Irradiance 1000W/㎡, Modules Temperature 25℃, AM=1.5 | |
Temperature Coefficient And Mechanical Characteristics Of JAYUAN Mono Solar Panel 240w
Nominal Operating Cell Temperature (NOCT) | 47℃+/-2℃ |
Temperature Coefficient of Pmax | -0.47%/℃ |
Temperature Coefficient of VOC | -0.346%/℃ |
Temperature Coefficient of ISC | +0.036%/℃ |
Solar cell | Mono156*156mm |
No.of cells | 60 (6×10) |
Dimensions | 1640mm*992mm*35mm |
Weight | 18kg |
Front Glass | 3.2mm tempered glass |
Frame | Anodized aluminium alloy |
Junction Box | PV--YH0906/PV-JB002 |
Connector | Plug and socket |
Output Cables | PV 4.0mm², 0.9m |
1*20’ | 300pcs |
1*40’ | 728pcs |
1*40HQ | 784pcs |
